4K Video Solution
Canon C500/C500 PL
4K 10bit RAW Output / 4096x2160, 3840x2160, 4096x1080, 3840x1080
frame rate : 59.94P, 29.97P, 23.98P, 50.00P, 25.00P, 24.00P
3G-SDI x 2 Output / RAW; RGB, 4:4:4, 12bit; RGB, 4:4:4, 10bit; YCC, 4:2:2, 10bit
Dimension : 160 x 179 x 171 mm / 160 x 179 x 177 mm(PL Mount)

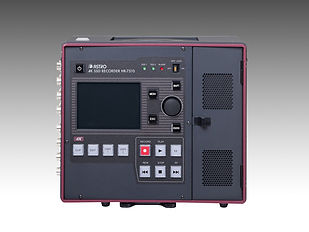

Astro HR-7510
4K Recorder, model HR-7510 connects to Canon new 4K camera,
Cinema EOS C500 by 3G-SDI×2 and captures 4K RAW from C500,
Half size RAW, 2K RGB 4:4:4 and 2K YCbCr 4:2:2.
4K real time debayering output by 3G-SDI×4 and HD converted output by HD-SDI×2 for monitoring.
Small, light weight and compact body, SAS interface for high speed data transmission, monitoring LCD, clip management, etc.
4K RAW from C500 uncompressed data capture and 4K real time debayering output
SSD (Solid State Drive) recording media for high stability, reliability and robust mechanism
Supports 60p recording and variable frame recording
Time code embedded, LTC and internal
Data transfer by SAS interface or optional data transfer box (model HB-7511) to next workflow
Small, light weight and compact / 3.5inch preview LCD / Quick start / Camera/Lens metadata capturing
Camera REC start/stop / Battery support(option)
Canon 4K RAW or HRAW provided by C500 through 3G-SDIx2 to HR-7510 input, supporting all format of C500
Astro SD-7067
4K related equipments and materials have rapidly been increasing in the industry, while there comes various interfaces which cannot communicate each other. Astro 4K converter, SD-7067 has 3G/HD-SDI, HDMI input and 3G/HD-SDI, DisplayPort output to communicate between different interfaces. Format, frame rate conversion and other unique functions such as color correction are provided as well.
-Interface conversion from 3G/HD-SDI or HDMI to 3G/HD-SDI or DisplayPort
-Format conversion, for example, from RGB to YCbCr
-Frame rate conversion, for example, from 60fps to 24fps
-Color correction for each R, G and B
-Zooming from selectable HD area to 4K size
-Center, frame and user setting size marker
-Simple signal generation
Astro HB-7513 / RB-7513
Astro 4K RAW Real Time Debayerer, model HB-7513 cnnects to Canon Cinema EOS C500 by 3G-SDI×2 and makes real time 4K RAW debayering.Output color correction can be done for final look by changing from original Canon Log to Rec.709 or wide DR.HB-7513 can be controlled by dedicated remote controller, model RB-7513.
- 4K RAW from C500 uncompressed data capture and 4K real time debayering output
- Adjustable video parameter; knee, pedestal, flare, white, white clip, color matrix, detail, etc
- Small, light weight and compact

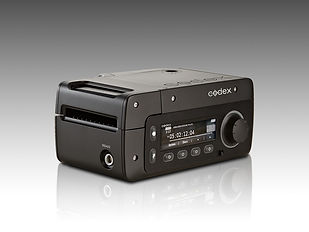

Codex Onboard S
The Codex Onboard S Plus Recorder is ideal for smaller cameras such as the the Canon EOS C500, as well as the entire Alexa family. Frame rates up to 60 frames per second (16:9) or 48 frames per second (4:3) are supported with the Alexa, and frame rates of up to 120 frames per second are supported with the Canon C500 at 4K.
